HALLWAY SYSTEMS

BOXWELL MOVES IN.

Turn any space
into storage

Easy to install
and maintain

An icon representing security, featuring a white padlock inside a shield outline on a muted brown background. This symbolizes the durability and security of Boxwell’s steel hallway systems, designed for strength and protection.

Durable, secure
all-steel design

About Boxwell Hallway Systems

Boxwell, the leader in exterior storage, is bringing our solutions inside.

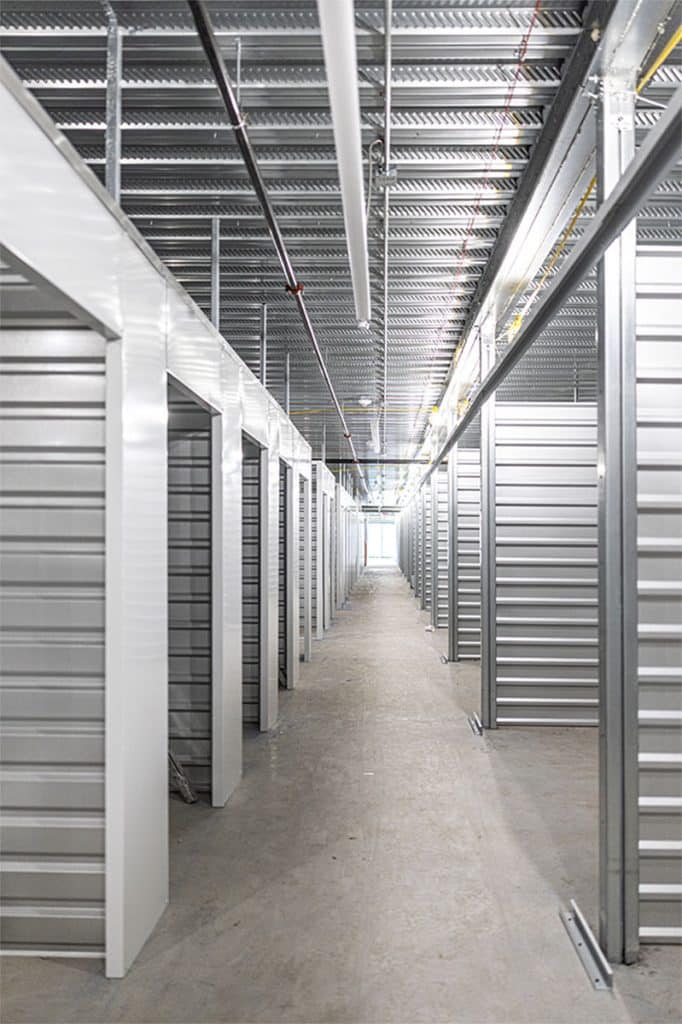

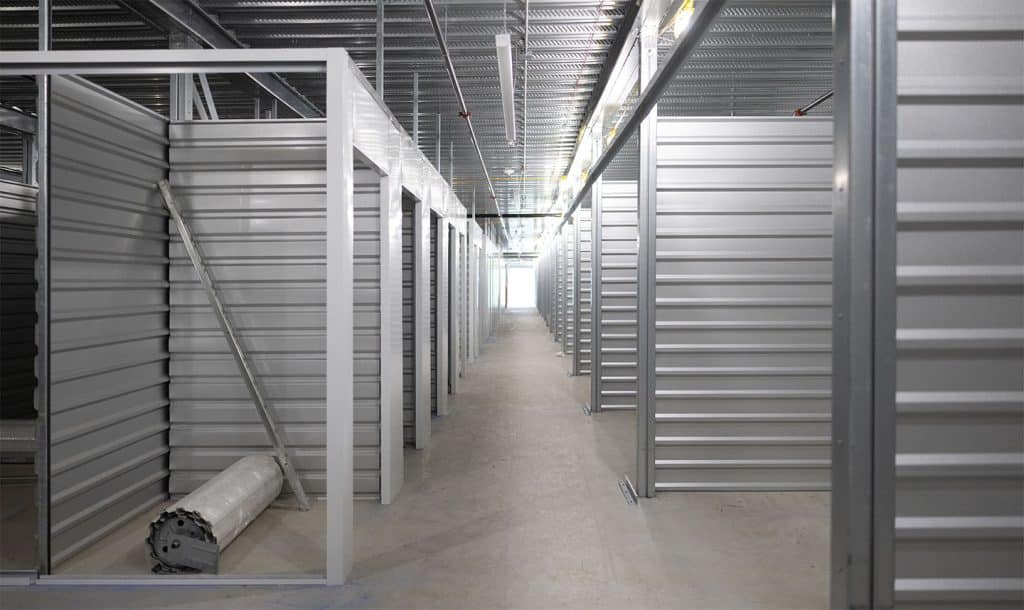

A hallway system is a storage building’s internal steel structure. It is a series of roll up doors,
walkways, and partition walls that segment a space into individual storage units. The system arrives on site

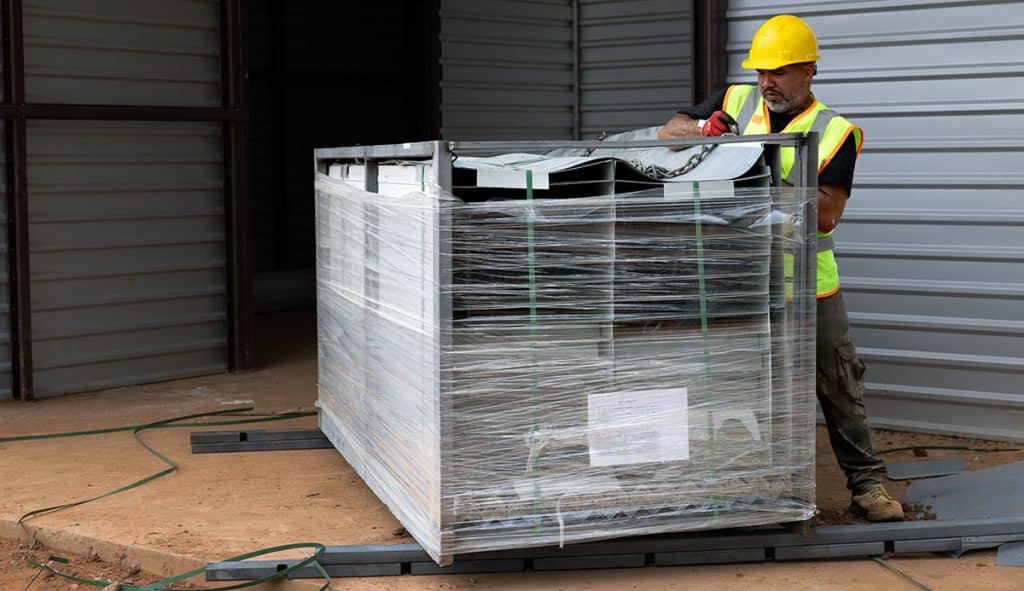

as a series of pre-cut steel components. They’re flat-packed when shipped, lowering the cost of freight.
Colors, configurations, and door types are all highly customizable.

Use Boxwell hallway systems for your next storage retrofit or new build.

Product

Specs

STRONG AND SECURE

ALL-STEEL CONSTRUCTION
Durable design safeguards belongings and outlasts the others


ANTI-THEFT MEASURES

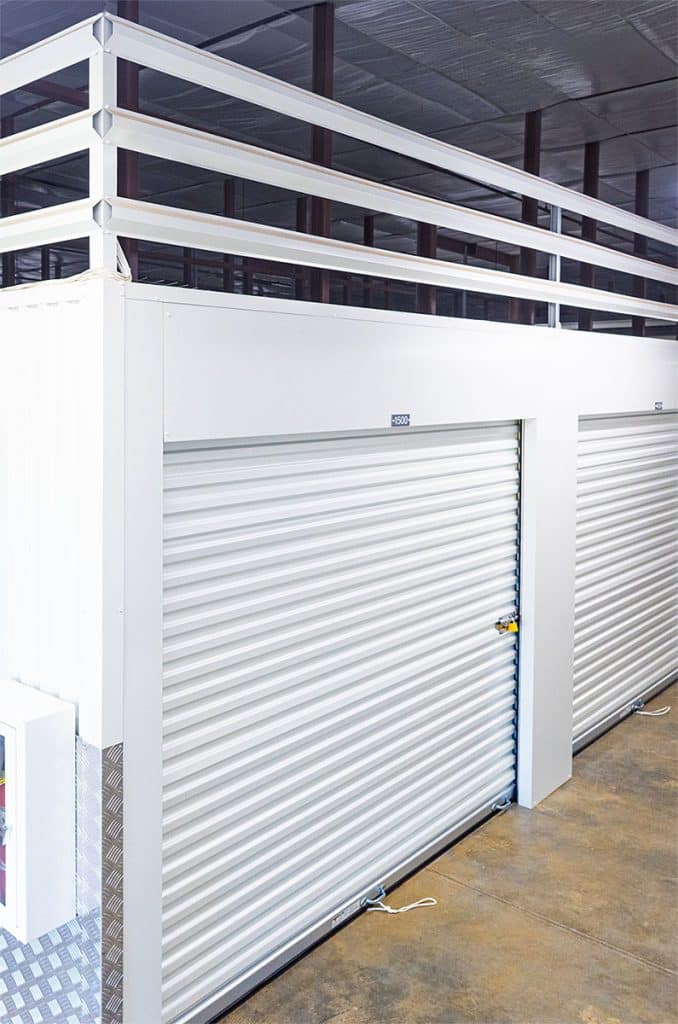

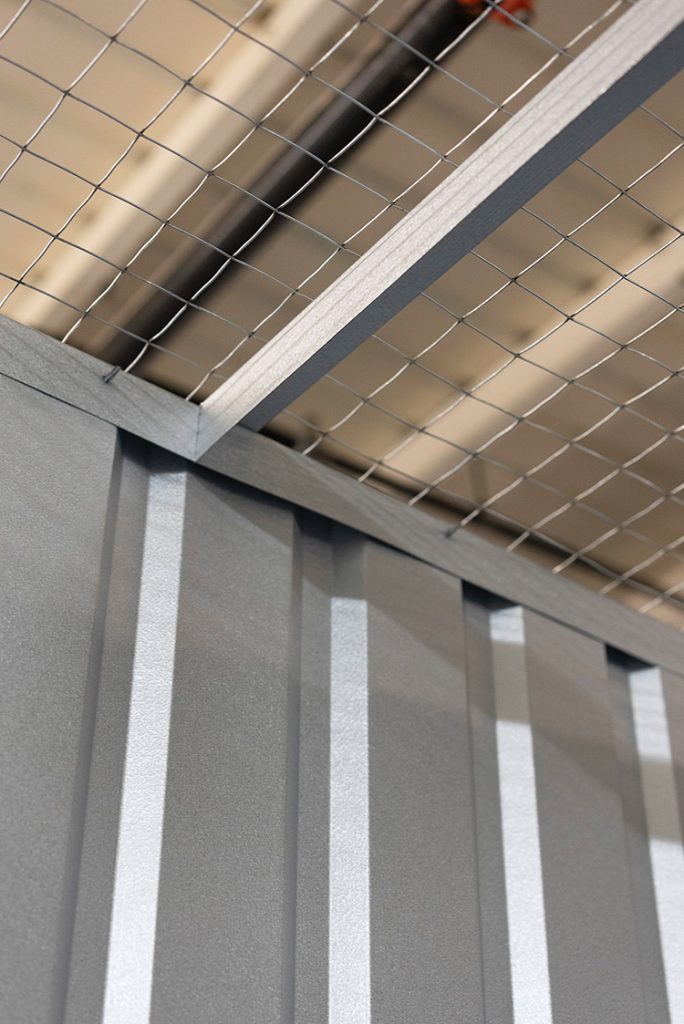

Top off storage units with burglar bars or wire mesh

STORAGE, SIMPLIFIED

READY TO INSTALL
Prefabricated system kits simply require onsite assembly


BUILT BY THE BEST
Boxwell’s install team will handle the delivery, unload, and install process

BUILT FOR YOUR BUSINESS

CUSTOM CONFIGURATION
Maximize area with tailor-made layout and unit sizes


REPRESENT YOUR BRAND

Choose from a wide range of door colors

SERVICES + WARRANTIES

WITH YOU EVERY STEP
From idea to install, the Boxwell team is here to help


PRODUCTS YOU CAN TRUST

Extensive warranties ensure product quality and integrity



Curtain Construction

  • Grade 80 corrugated steel is galvanized and finished with baked polyester top coat
  • Curtain steel thickness: 0.45mm (16ga)
  • Latch thickness: 1.88mm (14ga) with built in overlock
  • Felt backing prevents rubbing or scratching
  • Galvanized bottom bar and door handle

POPULAR COLORS

*Additional colors available, please inquire for full color sheet

Internal Components

  • End Cap: 1.2mm (18 ga) simplified design reduces the number of openings and moving parts
  • Radial Ball Bearings: pre-lubricated, maintenance free bearings greatly reduce frictional resistance
  • Springs: grease coating prevents pitting and rust
  • Barrel: 0.5mm (24 ga) end-to-end galvanized steel barrel protects and conceals drums, bearings, springs, and axle
  • Tensioner: ratchet spring tensioner allows for fast and east adjustments
  • Bottom Bar: 2.5mm (10 ga) reinforced bar sits firmly in track – includes pull handle, rope, and seal

Services & Warranties

  • White glove install service available (subject to additional fees)
  • ADA compliance kit available
  • Three year warranty: manufacturing  materials, and workmanship
  • Ten year warranty: paint
